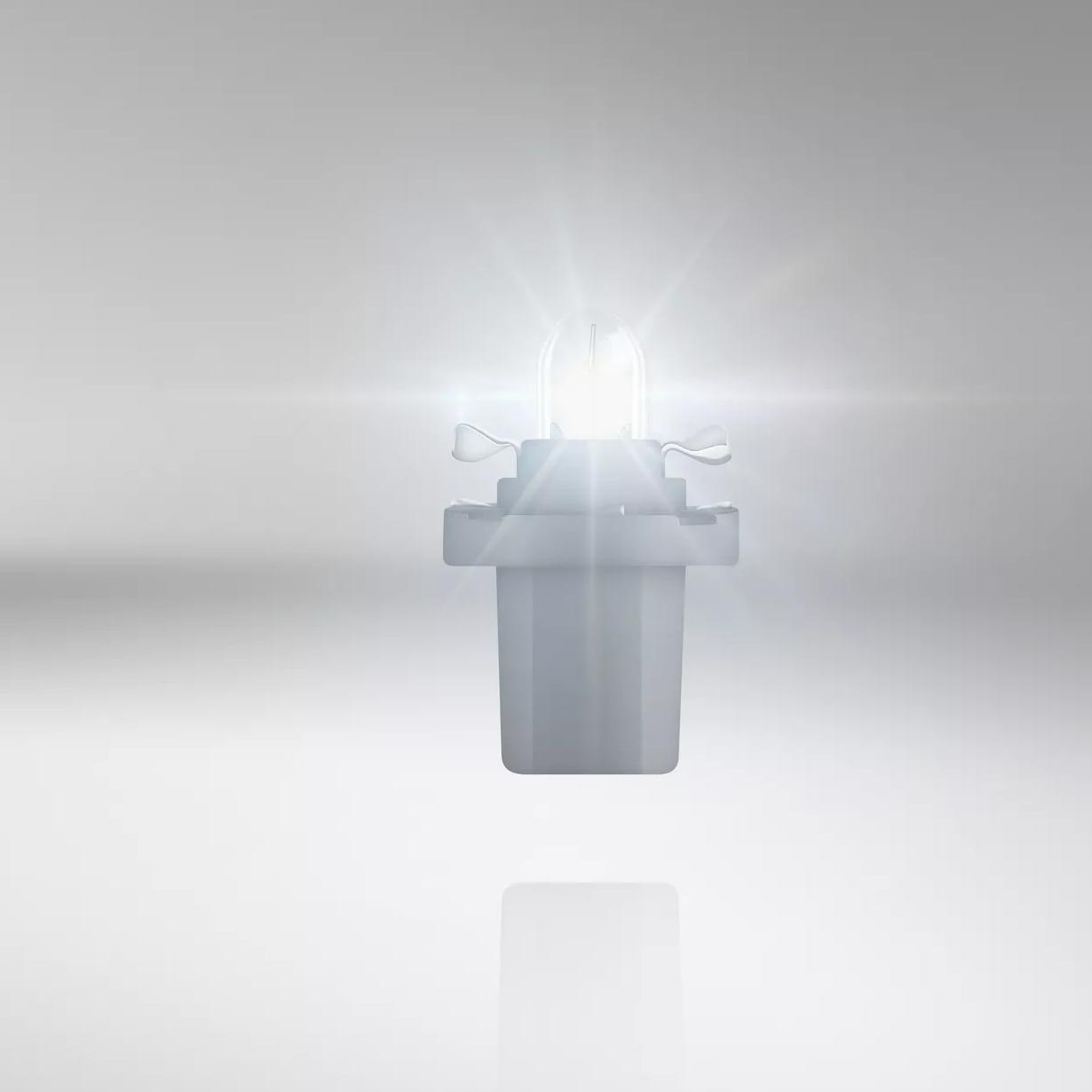

ORIGINAL - PLASTIC MF BASE 2741MF
The cost-effective original spare parts for trucks
With the ORIGINAL signal lamps for printed circuit boards, OSRAM offers a wide product range of original spare parts for trucks. These lamps provide OSRAM´s reliable OEM quality and can be used for instrument and switch lighting.
Technical Data
Country specific categorizations
Order reference
2741MF
Product information
Application (Category and Product specific)
Auxiliary lamp
Electrical data
Power input
1.6 W
Nominal voltage
240 V
Nominal wattage
120 W
Power input tolerance
±10 %
Test voltage
28.0 V
Photometrical data
Luminous flux
64 lm
Luminous flux tolerance
±25 %
Dimensions & weight
Length
235 mm
Diameter
500 mm
Product weight
118 g
Colors & materials
Base color
Slate grey
Lifespan
Lifespan B3
400 h
Lifespan Tc
2000 h
Additional product data
Base (standard designation)
B8.5d
Capabilities
Technology
AUX
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration
05-03-2024
Primary Article Identifier
4008321018861 | 4050300891606
Candidate List Substance 1
No declarable substances contained
Declaration No. in SCIP database
In work
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
---|---|---|---|---|---|
4008321097200 |
VS
| 50 | 148mm x 115mm x 55mm | 143.00g | 0.94dm³ |
4050300891606 |
UNV
| 1 | 5mm x 5mm x 24mm | 1.00g | 0.00dm³ |
4050300891613 |
FS
| 10 | 46mm x 29mm x 112mm | 22.70g | 0.15dm³ |
Country specific information
EAN |
STK number |
METEL code |
---|---|---|
4008321097200 | 4739314 | OSRA2741MF |
4050300891606 | 4739314 | OSRA2741MF |
4050300891613 | 4739314 | OSRA2741MF |
Downloads
Tools
Information about Family
With the ORIGINAL signal lamps for printed circuit boards, OSRAM offers a wide product range of original spare parts for trucks. These lamps provide OSRAM´s reliable OEM quality and can be used for instrument and switch lighting.
